This article mainly introduces Caterpillar 320C Excavator Alternator -Installation
Caterpillar CAT Factory Password Calculator Generator 10 Digits VM Version
1. Install alternator (1) to the machine.
2. Install the spacer, the washer, and bolt (9)
3. Install the spacer, the washer, and bolt (8) to the
alternator.
4. Install the washer and bolt (7) to the alternator.
Caterpillar ET 2022A & 2019C Electronic Technician Diagnostic Software
The radiator is removed for photographic purposes

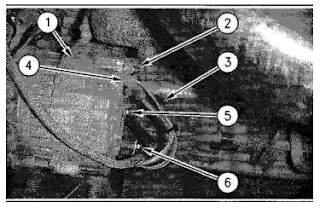

5. Install the wiring harness to alternator (1). Install
the spacer, the washer, and bolt (6) to alternator
10.2021 Caterpillar SIS EPC+Service Manual download & Full Installation Service
6. Connect two ground wires to alternator (1). Install
the washer and bolt (5).
7. Connect electrical connection (3).
8. Install electrical connection (4) to alternator (1).
9. Connect the wire that is behind rubber boot (2).
Install the washer and the nut that is located
behind rubber boot (2).
End By:
a. Install the V-Belts. Refer to Disassembly and
Assembly, "V-Belts - Remove and Install" in this
manual.
b. Activate the electrical system. Refer to Operation
and Maintenance Manual, "Battery Disconnect
Switch" in order to activate the electrical system.
